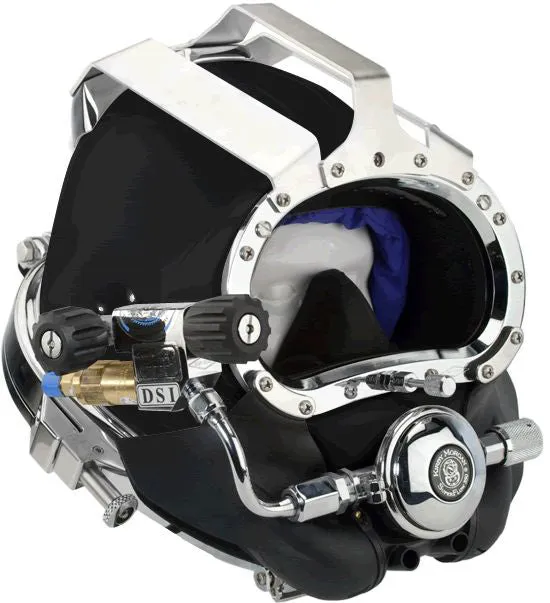

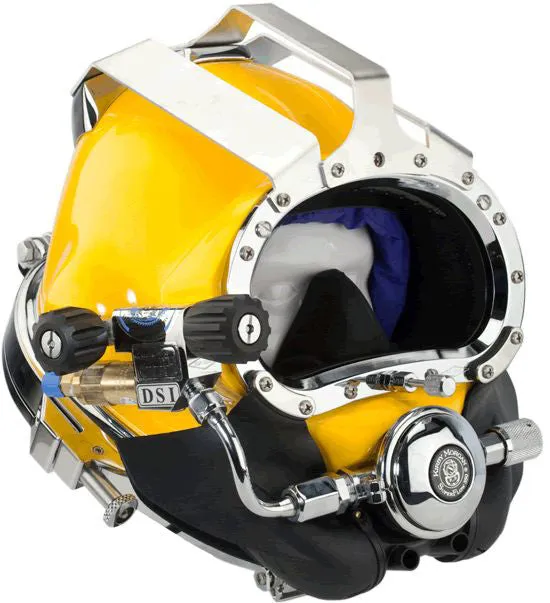

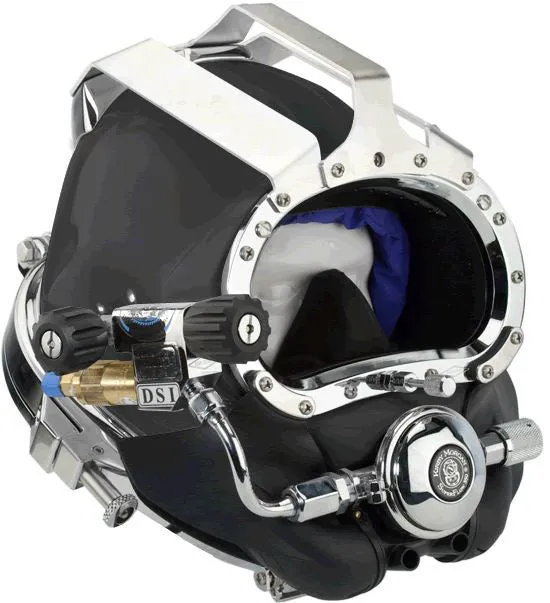

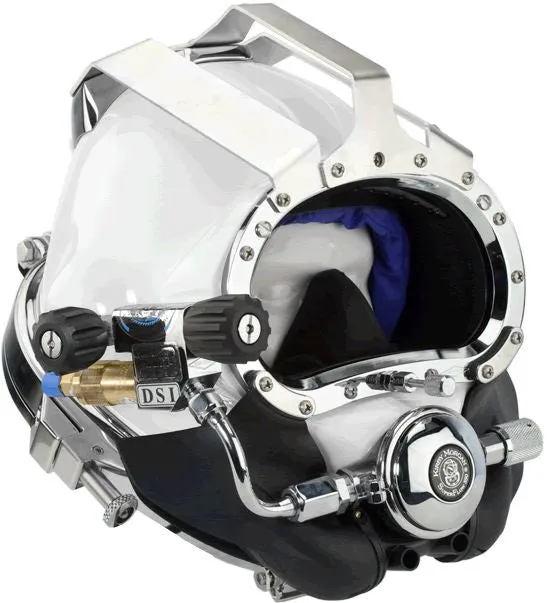

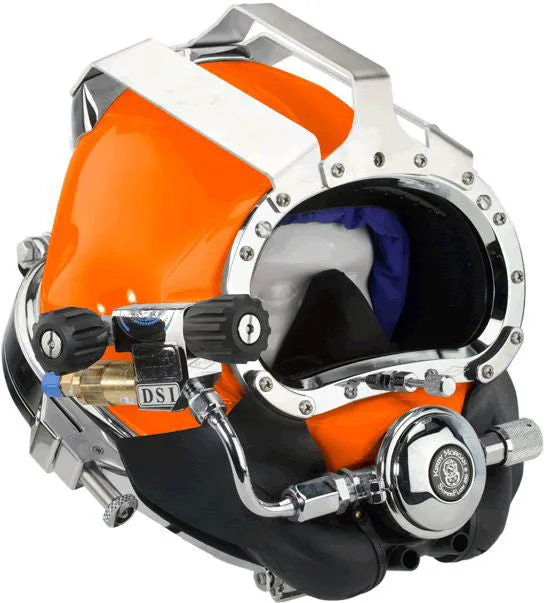

It features fiberglass and carbon fiber reinforced shell. The Quad-Valve™ exhaust system, which retrofits to most previous Kirby Morgan® Helmets, has less breathing resistance than the older single valve exhaust while providing an extremely dry hat. This system is recommended for diving in biologically contaminated water. Our SuperFlow® regulator is a proven design that provides excellent breathing characteristics over a wide range of depths.The SuperFlow® 350 is standard on this helmet.
The Helmet Shell is hand laid up glass fiber reinforced thermal setting polyester (fiberglass) with carbon fiber reinforcement at key points for added durability. It is light and highly impact resistant, and provides a heat/cold barrier as well as being an excellent electrical nonconductor. Kirby Morgan® has over 50 years experience in composite laminations.
CE Certification:
The SuperLite® 17C helmet has been tested and conforms to the performance requirements as set forth in Annex II of Directive 89/686/EEC and, as far as applicable, the EN 15333-1:2008/AC:2009 (class B). It is fully CE marked with demand regulator SuperFlow® 350 and oral nasals P/N 510-690 and P/N 510-747(now standard).
What's in the box:
- SL 17C Diving Helmet- Part # 500-599 (POSTS) or 500-600 (MWP)
- Logbook w/ pen- Part # 125-001
- Helmet/Mask Bag- Part # 500-901
- Tool Kit with Pouch- Part# 525-620
- Neck Dam, size Medium- Part# 510-628

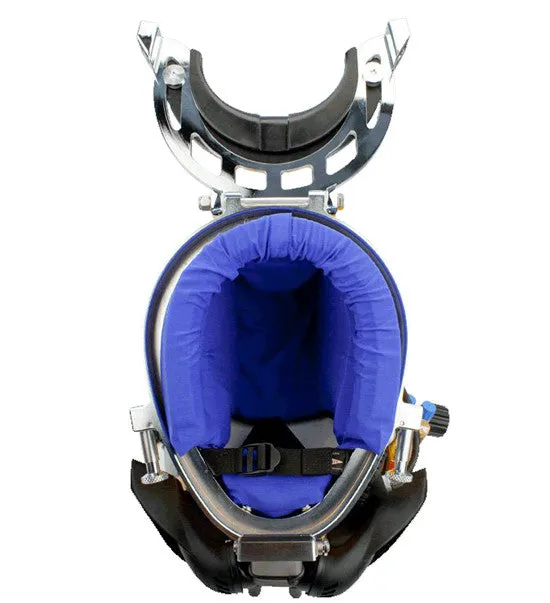

- Head Cushion Assembly(Snoopy)- Part# 510-754
- Current Certification
- Test Specifications
- Warranty registration card
|
Air Train
The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate.
|
Defogging Steady Flow Valve
Provides an additional flow of gas into the helmet for ventilation and defogging.
|
Emergency (EGS) Valve
Supplies backup breathing gas to the diver.
|
|
Whisker Wings
Bubble deflecting Whisker wings keep bubbles further from face port and ears, improving visibility and decreasing internal noise.
|
Gas Supply Non-Return Valve
Commercial Rated™, It prevents loss of gas pressure in the event of umbilical damage.
|
Nose Block Device
Allows the diver to block the nose to equalize ears.
|
|

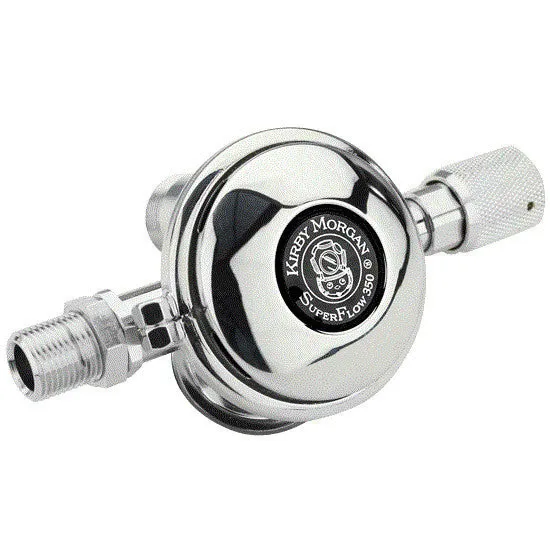

SuperFlow 350 Regulator
This all metal, fully adjustable, Commercial Rated™ demand regulator provides easy breathing and excellent performance with low pressure compressors.
|
Mounting Brackets
These mounting brackets make it quick and easy to attach accessories to your helmet..
|
Fiberglass and Carbon Fiber Reinforced Shell
The helmet shell is hand laid up glass fiber reinforced thermal setting polyester (fiberglass) with carbon fiber reinforcement at key points for added durability. It is light and highly impact resistant, and provides a heat/cold barrier as well as being an excellent electrical nonconductor.
|
|
Side Block
Multi use side block has additional ports built in to provide controlled air flow, if needed.
|
Silicone Oral Nasal Mask
Made of silicone material which is hypo-allergenic and has a longer work life than latex.
|
|
